Rhinox Excavator Attachments - Tine Spacings / Tine Widths

Rhinox Excavator Attachments - Tine Spacings


The spaces between tines on Excavator Attachments like Land Rakes or Riddle Buckets, can vary from manufacturer to manufacturer. This is a question we regularly get asked from customers as the tine spacings will determine how thoroughly your attachment will filter and sort materials.

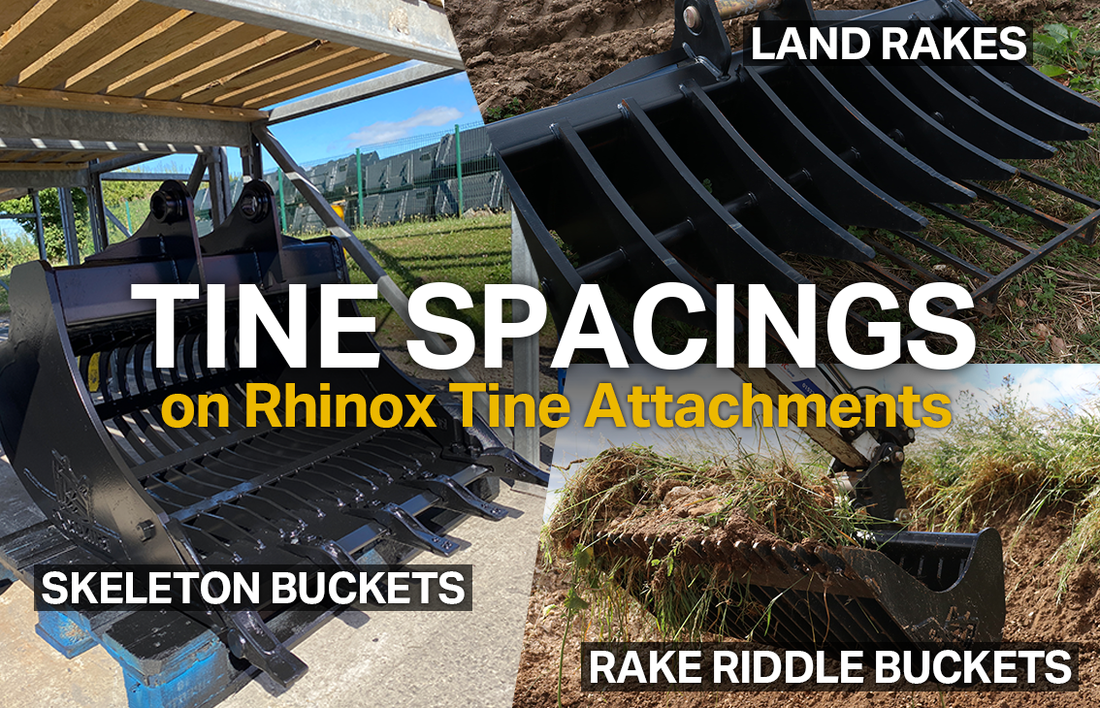

Rhinox manufacture 3 similar attachments, with varying tine widths, the Land Rake, Skeleton Bucket and Rake Riddle Bucket - so this post will summarise the attachments, the tine widths and best uses.



Don't want to read? Watch this video instead.


Rhinox Land Clearance Rake
Land Clearance Rake


A Land Rake acts similarly to your standard garden rake, or a comb. It rakes over the surface of the ground, bringing sorted materials into a pile. It is best used to clear the ground of shrubs, brambles, debris or similar, before landscaping or building.

Tine Spaces

Machine Size (Ton / Lbs)

Attachment Tine Spacing (Inches)

0.75 Ton / 1,680 Lbs 4" Wide Gaps
1.5 Ton / 3,360 Lbs 4" Wide Gaps
3 Ton / 7,000 Lbs 4" Wide Gaps
4 Ton / 9,000 Lbs 5" Wide Gaps
Up to 8 Ton / 16,000 Lbs 5" Wide Gaps

Rhinox Riddle Bucket / Skeleton Bucket
Skeleton / Riddle Buckets


A Riddle Bucket is an attachment, similar in shape to a Digging Bucket, with a slotted back. They are designed to separate soil and smaller aggregates from larger materials like bricks, rocks or material of similar size.

Tine Spaces

Machine Size (Ton / Lbs)

Attachment Tine Spacing (Inches)

0.75 Ton / 1,680 Lbs 2" Wide Gaps
1.5 Ton / 3,360 Lbs 2" Wide Gaps
3 Ton / 7,000 Lbs 2" Wide Gaps
4 Ton / 9,000 Lbs 2" Wide Gaps
Up to 8 Ton / 16,000 Lbs 2" Wide Gaps

Rhinox Rake Riddle Bucket
Rake Riddle Buckets


A Rake Riddle Bucket is the combination of a Land Rake and Skeleton / Riddle Bucket. It has a similar shape to a Standard Ditch Cleaning Bucket but with a slotted back and tines extending further than the lip plate. This attachment allows you to rake the ground of brambles or bushes, and riddle the soil of loose debris or larger aggregates / debris.

Tine Spaces

Machine Size (Ton / Lbs)

Attachment Tine Spacing (Inches)

0.75 Ton / 1,680 Lbs 2" Wide Gaps
1.5 Ton / 3,360 Lbs 2" Wide Gaps
3 Ton / 7,000 Lbs 2" Wide Gaps
4 Ton / 9,000 Lbs 2" Wide Gaps
Up to 8 Ton / 16,000 Lbs 2" Wide Gaps
Rhinox Tine Spacings Matrix

If you require further assistance, contact our Customer Support Team at sales@rhinox-group.us or tel: +1 267 861 0812
