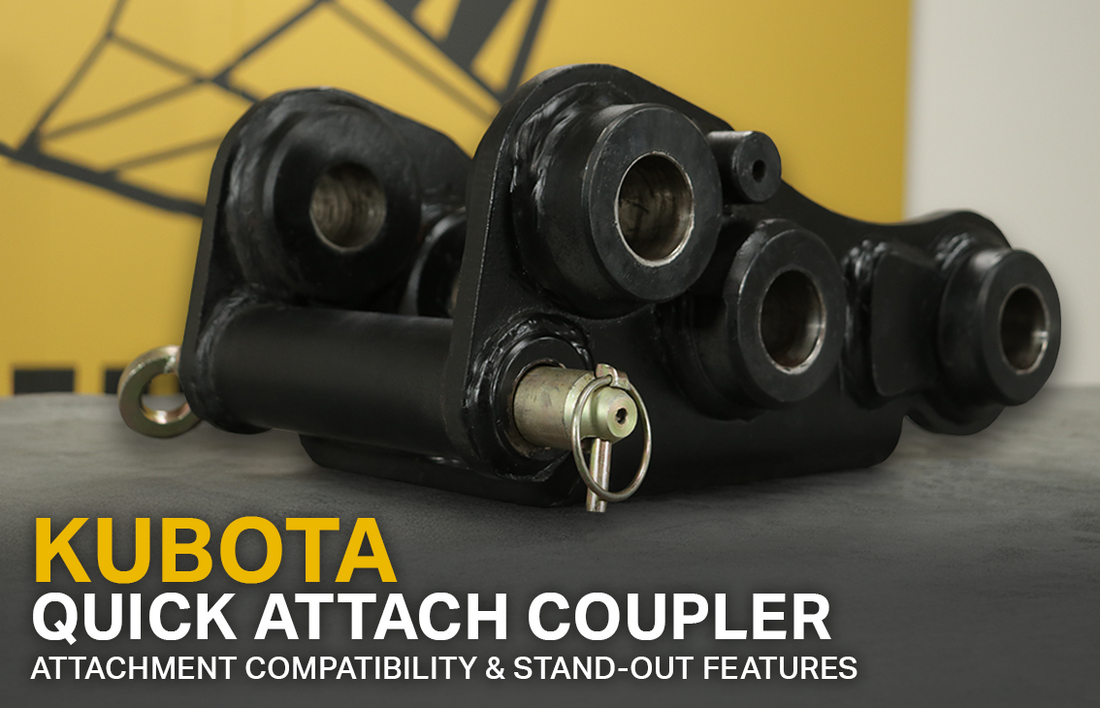

Rhinox Kubota-Style Quick Attach Coupler
Guides, Tips, & Knowledge Centre Catherine Jordan

Rhinox Kubota-Style Quick Attach Coupler


Kubota quick attach couplers are a popular choice for excavator owners looking to make swapping attachments faster and easier. In this blog, we’ll cover what a Kubota quick attach coupler is, how it works, compatibility considerations and the features and benefits of Rhinox’s Kubota-style couplers and attachments.

What is a Kubota Quick Attach Coupler?


A Kubota quick attach coupler is a dedicated quick hitch system designed specifically for Kubota excavators. It allows operators to swap excavator buckets and attachments quickly and safely without too much manually handling. The original Kubota quick attach system was designed by Kubota themselves, but as the market has grown, other comparable options are now available. The Rhinox Kubota-style quick attach coupler is built to the same OEM (original equipment manufacturer) specifications, giving you full compatibility with your genuine Kubota excavator buckets and attachments, as well as other OEM compatible aftermarket attachments - like those available directly from Rhinox.

How Does the Kubota Quick Attach Work?

The Kubota quick attach coupler is a manually operate system which means some labour is required.

  1. Remove the rear locking pin located just below the back pin of your excavator arm.
  2. Engage the front pin of your excavator with the hooks on the top of the attachment.
  3. Crowd the back of the coupler until it sits flush with the top of the attachment.
  4. Align the pin holes in the coupler and attachment, then slide the rear locking pin through to secure the attachment in place.
  5. To detach your attachment, simply reverse the process: remove the rear locking pin, crowd the back of the coupler away from the attachment, and gently lift the front pin out of the attachment hooks.
Mounting a Rhinox Kubota Quick Attach Rake Riddle Bucket

Do Kubota Quick Attach Couplers fit other brands?


Kubota quick attach couplers are designed specifically for Kubota excavators and do not fit other excavator brands. Unlike some universal couplers, like mechanical quick couplers, the Kubota quick attach system uses a unique mounting design. This means the coupler will only pick up attachments with the compatible Kubota hanger system. Any attachment without this specific hanger will not mount to the Kubota quick attach coupler, making it incompatible with excavators from other manufacturers.


USA VS Canadian Kubota Quick Attach


The Kubota excavator is popular across the globe but finding machine differences is common depending on your location. One huge difference that we have encountered when talking to customers is the Canadian Kubota quick attach is designed differently to the American-style. The hangers of the Canadian quick attach look similar to the Deere wedgelock, featuring hooks at the front and rear of the hangers, rather than the standard Kubota quick attach with rear pin holes. If you're struggling to find attachments to suit your Canadian-style Kubota quick attach, check out our video for a solution.

Stand-out Features of Rhinox Kubota-Style Quick Attach Couplers


Designed for Full OEM Compatibility

Rhinox Kubota Quick Attach Coupler - OEM Compatibility

The Rhinox Kubota quick attach coupler is engineered specifically to suit the OEM Kubota quick attach attachment system (model reference K7870A). This means it is compatible with all existing Kubota quick attach buckets and attachments without the need for any modifications. It works seamlessly with genuine Kubota excavator attachments, as well as aftermarket Kubota quick attach buckets and attachments from manufacturers like Rhinox. Rhinox offer a whole range of Kubota quick attach buckets and attachments, including Kubota quick attach pallet forks.

Built to Last - Rhinox Quality & Manufacturing


Rhinox Kubota-style quick attach couplers are built for strength, precision and longevity. Each coupler is fabricated from high-strength, structural steel plates, which are carefully welded together and then CNC machined. Machining after welding allows us to compensate for any heat distortion or warping that's occurred during fabrication and ensures tight tolerance control on all critical fitments, particularly at the machine pick up points. The result is a more precise, secure fit on your excavator, reducing lateral movement, minimizing wear and ultimately extending the life of both your coupler and your excavator.


Rhinox Kubota Quick Attach Coupler - Built to Last

Kubota Quick Attach Buckets & Attachments


Rhinox offers a full range of Kubota quick attach buckets and attachments, including quick attach pallet forks, tilting buckets and landscaping rakes. Each Rhinox quick attach attachment is designed to work seamlessly with genuine or aftermarket Kubota quick attach couplers. Every attachment is built to the highest standards, ensuring a precise fit with the Kubota hanger system, so you can switch tools quickly and safely without worrying about compatibility issues. Shop our range of Kubota quick attach products online today.


Purchasing & Shipping


Shopping for a Rhinox Kubota quick attach coupler is quick and hassle-free. Our quick attach coupler range is available to shop online directly from the Rhinox website, with all orders shipped free freight to the lower 48 states and delivered in just 4 to 7 business days. Each coupler is shipped boxed with a rear locking pin to secure your attachments. Your existing excavator pins must be used to mount the coupler to your excavator - if required, replacement pins are available from Rhinox. Get in touch to order your replacement pins.
